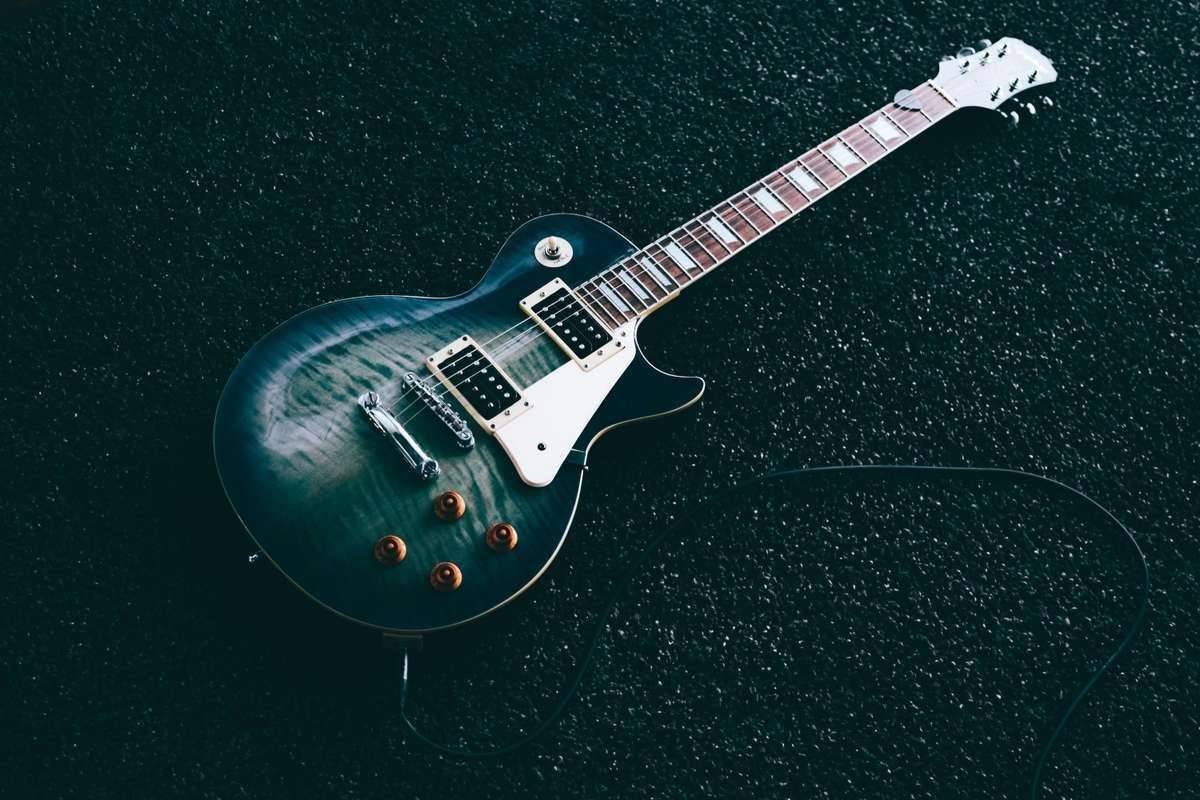

Photo by Jeremy Allouche on Unsplash

## The Ultimate Gibson Les Paul Setup Guide: Action, Intonation, and Humbucker Tuning

The Gibson Les Paul remains the blueprint for thick sustain, singing leads, and a reassuringly solid feel. Nailing the setup is what separates a heavy plank from a responsive instrument that rings for days. This guide mirrors the structure of our Stratocaster setup blueprint, but dials in every spec for a single-cut with a Tune-o-Matic bridge, stopbar tailpiece, and dual humbuckers. Expect actionable measurements, quick answers, and practical tweaks that you can implement with a handful of common tools.

Essential Tools and Prep Checklist

• Climate control: Keep a D'Addario Humidipak inside the case and log humidity to prevent nitro finish cracks.
• Measuring kit: Jim Dunlop String Action Gauge, feeler gauges (.008"–.020"), capo, and a straightedge ensure consistent specs.
• Adjustment tools: 5/16" truss rod wrench, small flathead for saddle screws, nut files, and a D'Addario Multi-Tool for quick tweaks.
• Reference data: Relief 0.25 mm, nut slot gap 0.25/0.40 mm (treble/bass), action 1.5–2.0 mm, stopbar just above the bridge’s rear edge.
• Workspace: Padded bench, neck rest, bright task lighting, and a notebook or phone to capture “before and after” measurements.

Task	Target Spec	Tool(s)	Cross-Reference
Neck relief	0.010" (0.25 mm) @ 8th fret	Capo + feeler gauges	Guitar Truss Rod Adjustment
Action	1.5–2.0 mm @ 12th fret	String action gauge	Guitar Action Height Guide
Pickup height	Bridge 2.4/1.6 mm, Neck 2.8/2.0 mm	Ruler + screwdriver	Pickup Height Blueprint
Stopbar tension	Lowest w/out touching bridge	Flathead + sharpie marks	Telecaster Setup Guide

📊 Quick Tools: Factory Specs • Gibson Serial Number Lookup • Fender Serial Number Lookup • My Garage

Part 1: Understanding Les Paul String Height (Action)

Quick Answer: Standard Les Paul action measures 1.5 mm (0.059") on the high E and 2.0 mm (0.079") on the low E at the 12th fret. Players who dig in hard often prefer pushing the bass side toward 2.2 mm for extra headroom.

The carved-maple top, shorter 24.75" scale, and Tune-o-Matic bridge respond differently than a Fender trem. Lower action is possible, but too low causes buzzing because the shorter scale slackens string tension.

String	Standard Height (12th fret)	Genre Notes
High E	1.5 mm / 0.059"	Fast lead, bends
B	1.6 mm / 0.063"	Smooth vibrato
G	1.7 mm / 0.067"	Prevents wolf tones
D	1.8 mm / 0.071"	Rhythm clarity
A	1.9 mm / 0.075"	Detuned punch
Low E	2.0 mm / 0.079"	Palm-mute control

Measure action with the guitar in playing position after the neck and bridge are roughly dialed in. The shorter scale exaggerates differences, so make micro-adjustments and recheck relief before committing.

Part 2: Adjusting Action on a Les Paul

Quick Answer: Raise or lower overall action using the two bridge thumbwheels, then fine-tune individual string height with saddle files if needed. Always retune and re-measure at pitch.

1. Check neck relief first – Capo the first fret, fret the last, and measure at the 8th fret. Ideal relief is 0.25 mm (0.010"). Adjust the truss rod (clockwise to reduce relief, counterclockwise to add) in 1/8 turns.
2. Level the bridge – Ensure the Tune-o-Matic sits parallel to the strings. Uneven thumbwheels cause dead spots.
3. Dial in thumbwheel height – Turn clockwise to lower action, counterclockwise to raise. Make equal turns on both posts for balanced feel.
4. Micro-adjust saddles – If an individual string still feels off, lightly file the saddle notch or shim with brass stock to change string seating.
5. Retune and test – Move between positions, bend strings, and listen for choking around the 12th–17th frets.

Thumbwheel Height Cheat Sheet

Setup Style	Bass Thumbwheel	Treble Thumbwheel	Best For
Low & Fast	0.45" above top	Match bass side	Lead lines, light touch
Balanced Studio	0.50"	0.48"	Session work, hybrid picking
High Headroom	0.52"	0.50"	Slide, drop tunings, heavy attack

Pro tip: Mark each thumbwheel position with a fine-tip marker before major adjustments so you can revert instantly if needed.

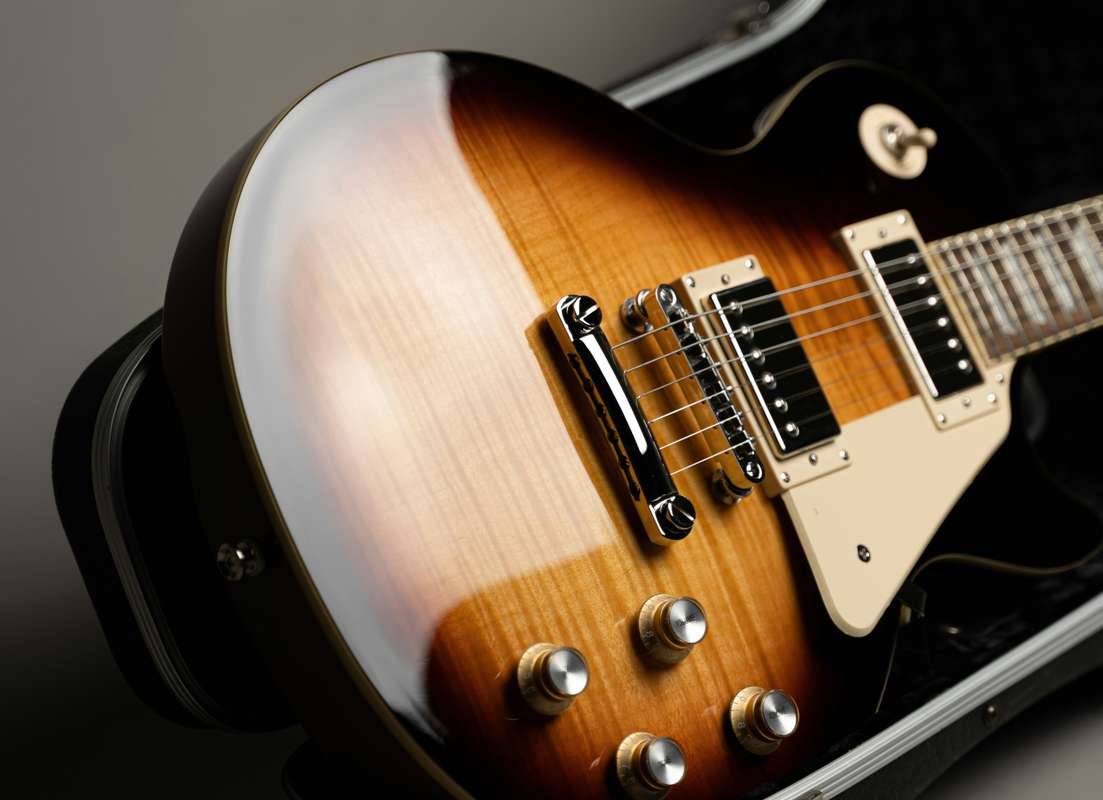

Photo by Krzysztof Hepner on Unsplash

Part 3: Les Paul Pickup Height and Humbucker Balance

Quick Answer: Gibson humbuckers start at 2.4 mm (3/32") on the bass side and 1.6 mm (1/16") on the treble side, measured while fretting the last fret. Lower the neck pickup slightly to keep low-end bloom under control.

Pickup	Bass Side	Treble Side	Notes
Neck Humbucker	2.8 mm (7/64")	2.0 mm (5/64")	Keep airy to avoid mud
Bridge Humbucker	2.4 mm (3/32")	1.6 mm (1/16")	Higher for bite

Steps for Precise Humbucker Height

1. Match string radius – Les Paul saddles follow a 12" radius, so ensure pole pieces mimic that arc.
2. Balance pickups – Start with the bridge, then raise the neck until volume matches in the middle toggle position.
3. Refine pole pieces – Raise the D and G poles slightly for chord clarity, especially on PAF-style pickups.
4. Play at stage volume – Humbuckers compress with gain; final tweaks should happen through your loudest rig.

Part 4: Tune-o-Matic Bridge, Stopbar, and Intonation

Quick Answer: Set the stopbar as low as possible without strings touching the back of the bridge. Intonate by moving saddles forward if notes are sharp, back if flat, always referencing the 12th fret harmonic vs fretted note.

Stopbar & Break Angle

• Top-wrapped vs standard – Top-wrapping softens tension for blues bends, while a standard wrap keeps more downforce for aggressive picking.
• Avoid string-to-bridge contact – Raise the stopbar or notch the bridge if strings graze the rear edge; buzzing will follow.
• Lock it in – Once intonation is set, snug the set screws (if your bridge has them) to prevent drift.

Intonation Checklist

1. Tune to concert pitch with your gig tuner (Boss TU-3 or Peterson Strobo).
2. Compare the 12th fret harmonic to the fretted note.
3. If the fretted note is sharp → move saddle back (toward tailpiece).
4. If flat → move saddle forward (toward pickups).
5. Retune after every adjustment.

Part 5: Neck Relief, Nut Height, and Playability Tweaks

Quick Answer: Aim for 0.25 mm (0.010") relief, 0.25 mm nut slot height on the high E, and 0.4 mm on the low E. Smooth nut slots with 600-grit paper and lubricate with graphite or nut sauce.

• Relief – Too little relief causes buzzing in the lower frets, while too much makes the guitar feel stiff. Adjust with micro turns and let the wood settle between tweaks.
• Nut slot depth – Measure at the 1st fret. Slots that are too high wreck intonation; too low causes sitar-like buzz.
• Fretwork – If a single fret keeps choking bends, spot-level or consult a tech for a level-and-crown.

Photo by andre mosele on Unsplash

Part 6: Electronics, Pots, and Grounding

Quick Answer: Les Paul wiring thrives on clean solder joints, proper shielding, and smooth taper pots. Scratchy pots or dull tone controls often trace back to dirty lugs or failing capacitors.

• Clean pots – Use contact cleaner, then rotate the knob fully 10–15 times.
• Check grounds – A cold solder joint on the back of a pot causes hum when you let go of the strings. Reflow with fresh solder.
• Swap caps thoughtfully – 0.022 µF is the standard. Going to 0.015 µF on neck tone keeps clarity for jazz cleans.
• Push/pull options – Coil splits, phase switches, or series wiring add flexibility without altering the classic silhouette.

Part 7: Maintenance and Climate Control

Quick Answer: Clean strings after every session, wipe the nitro finish with a microfiber cloth, keep humidity between 45–55%, and schedule a pro setup every 6–12 months.

• Daily – Wipe strings and hardware to slow corrosion.
• Monthly – Check stopbar studs for creep and tighten tuner bushings.
• Seasonal – Monitor humidity swings; nitro and glued neck joints react quickly.
• String choices – .010–.046 is the factory spec; drop tuning or aggressive playing may benefit from .011s for tighter response.

Part 8: Gig-Ready Protection and Transport

Quick Answer: A solid Les Paul deserves a rigid case with plush interior support so the angled headstock survives rideshare trunks and backstage bumps.

• Rigid construction – Hard plywood wrapped in PU leather shields the carved top and angled neck joint.
• Neck cradle – Prevents the notorious headstock breaks Les Pauls are known for.
• Spare room – Keep a string winder, polishing cloth, and mini toolkit inside so every setup tweak is within reach.

Part 9: Advanced Tone Shaping

Quick Answer: Fine-tune stopbar tension, string gauge, and pickup pole pieces for genre-specific response, then log your favorite settings for repeatability.

• Stopbar experiments – Raise the bass side 1/2 turn to soften feel for fingerstyle, or top-wrap only the treble strings for hybrid tension.
• Custom string sets – Combine heavier wound strings with lighter plains for balance.
• Pickup pole staggering – Raise the B and high E poles slightly for articulate bends; drop the low E pole to tighten palm mutes.
• Record your baselines – Snap photos of bridge heights and pickup measurements for future reference.

Troubleshooting Common Les Paul Issues

• Buzz above the 12th fret: Add a touch of relief, recheck thumbwheel height, and use a fret rocker to hunt for high frets.
• Neck feels stiff: If relief is correct, polish frets and consider lighter strings; Les Pauls react quickly to gauge changes.
• Muddy neck pickup: Lower the entire pickup one full turn, raise pole pieces under D/G strings, and consider 0.015 µF tone caps.
• Tuning drifts after bends: Lubricate nut slots, stretch strings thoroughly, and ensure stopbar studs aren't leaning forward.
• Ground hum when hands leave strings: Reflow solder on pot backs, confirm tailpiece ground continuity, and verify braided pickup shielding is intact.

Quick Reference: Les Paul Setup Specs

Component	Measurement	Notes
String Height	High E 1.5 mm, Low E 2.0 mm	At 12th fret
Neck Relief	0.25 mm (0.010")	Capo 1st, fret last, measure 8th
Nut Slot Height	High E 0.25 mm, Low E 0.40 mm	At 1st fret
Pickup Height	Bridge 2.4/1.6 mm, Neck 2.8/2.0 mm	Bass/Treble
Stopbar Height	Lowest without string contact	Adjust per feel
Setup Frequency	Every 6–12 months	More often on tour

Frequently Asked Questions (FAQ)

1. How often should I set up my Les Paul?

Every 6–12 months for most players, or whenever seasons change. Touring guitarists should check relief and action monthly because temperature swings affect the mahogany neck quickly.

2. What tools do I need for a Les Paul setup?

Essential tools include a string action gauge, feeler gauges, truss rod wrench, small flathead screwdriver for the saddles, a precise tuner, and nut files for fine slot adjustments.

3. How do I stop my Les Paul from going out of tune after bends?

Lubricate the nut slots, ensure the bridge posts are snug, and verify the stopbar isn’t pulling forward. Stretch new strings thoroughly and wind neatly on the tuners.

4. Why does my Les Paul buzz above the 12th fret?

High frets, insufficient neck relief, or a bridge set too low can all cause upper-register buzz. Add a touch of relief, raise the thumbwheels slightly, and check for uneven frets.

5. Should I top-wrap the tailpiece?

Top-wrapping reduces string tension and can make heavy strings feel slinkier. It also changes break angle slightly. Try both methods and keep the one that feels most stable.

6. What’s the ideal pickup height for PAF-style humbuckers?

Start at 2.4 mm bass / 1.6 mm treble on the bridge and 2.8 mm bass / 2.0 mm treble on the neck while fretting the last fret. Lower slightly if tones get muddy or too compressed.

7. Can I use lighter strings on a Les Paul without buzzing?

Yes, but you’ll need to re-balance relief and action. Lighter strings reduce tension, so add a touch of relief and raise the bridge marginally to prevent fret buzz.

8. How do I quiet ground hum on my Les Paul?

Check the ground wire from the tailpiece stud, reflow solder joints on the back of the pots, and ensure the switch cavity shielding is intact. Hum usually vanishes once every ground is solid.

9. What’s the best way to store a Les Paul long-term?

Loosen the strings a half-step, keep the guitar in a climate-controlled room (45–55% humidity), and store it in a rigid case with support under the headstock.

10. Where can I learn more setup techniques?

Explore our detailed Fender guides like the Jaguar setup walkthrough for additional measurement strategies that translate to your Les Paul.
